Doepfer Musikelektonik logo

Analogue  Modular  System  A-100

Width

HP

Depth

mm

Current

mA

Lighning Flash

Owners Manual

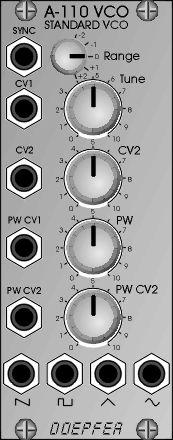

The A-110.1 Standard VCO provides 4 simultaneous waveforms, saw tooth, pulse, triangle and sine.


5 way octave selector switch.


The pulse width can be varied manually between 0% and 100% or controlled via one of it’s two pulse width CV inputs, one has 100% depth and the other has a variable depth control.


Pitch modulation is by CV1 (which is normally connected to the keyboard CV, and normalised to the bus board CV line) and CV2 which has a depth control.


The VCO scaling is 1 volt per octave, and provides a frequency range between 0.6Hz and 11KHz.


Oscillator sync is provided in the form of hard sync.


The A-110.1 uses reliable temperature compensation circuitry to maintain an accurate stable pitch.


10

10HP

A-110

Doepfer A-110.1

55

10HP

70

10HP

Standard Voltage Controlled Oscillator

A-110.1
